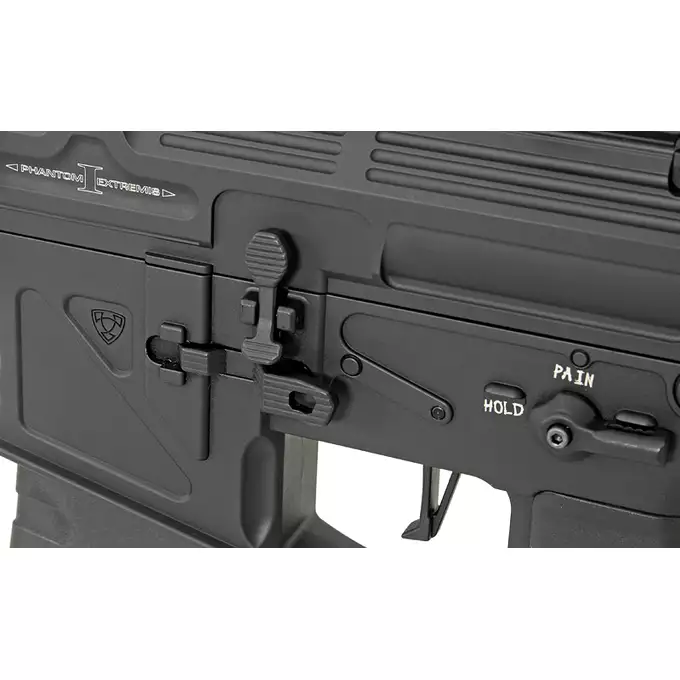

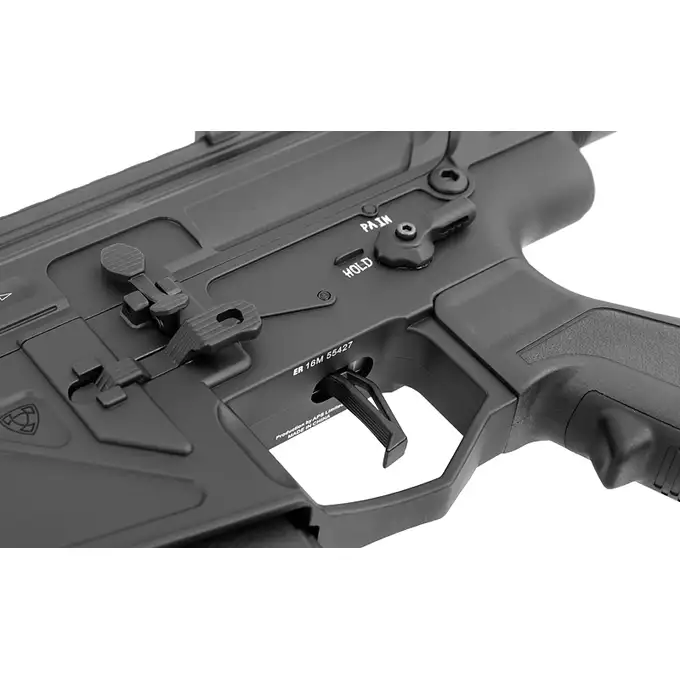

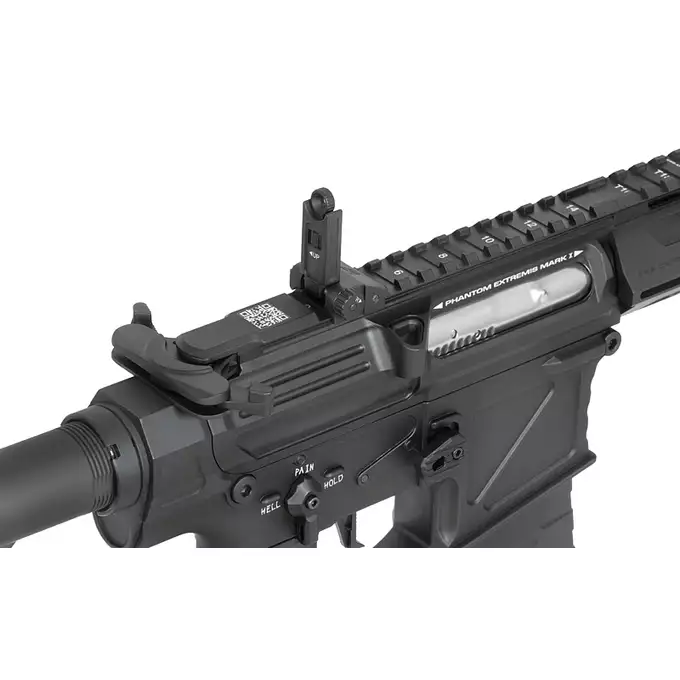

Phantom Extremis SDU2.0 eSilver Edge - black [APS]

The latest Phantom Extremis SDU2.0 eSilver Edge is a tactical rifle built for the user. It is a lightweight rifle with a modern design. It has an electronic "Super Dynamic Micro Chip Unit" trigger with a built-in programmable Mosfet system that provides instant response to trigger pull.

There are five different modes available.
Press and hold the button, which is located on the outside of the gearbox, accessed via the magazine slot.
You will see a red LED light, hold until you see it flash 2 times - release the button to accept the changes. Repeat the action to continue changing modes.

Mode 1 - Safe -Semi -Auto (default)
Mode 2 - Safe -Semi -3xBurst
Mode 3 - Safe -2xBurst -Auto
Mode 4 - Safe -3xBurst -Auto
Mode 5 - Safe -3xBurst -9xBurst
Pressing the button twice or disconnecting the battery at any time resets the ECU back to factory settings (mode 1)

The electronic chip is replaceable, repair is easy and friendly. The chip is programmed to protect the gearbox.
This eSilver Edge gearbox has been specifically designed for an electric trigger and has been reinforced at critical points - around the cylinder head and spring guide.
The piston has metal teeth and works with reinforced gears (The piston gear has a magnet that controls the electronic trigger).
The parts are TM-compatible, which means that individual components (apart from the piston pinion) can be replaced if required.

The eSilver Edge gearbox works perfectly with batteries from 7.4V to 12.5V - LiPo READY! Current is always a stable 11A at any voltage between 7.4V and 12.5V.
The low and stable current draw ensures slower battery discharge, and extends the life of the circuit.
Based on our tests, the trigger response time is just 0.02 sec. The short trigger stroke makes it incredibly fast.

Key features of the Phantom Extremis Rifle SDU2.0 eSilver Edge:

• Quick-change spring system,
• Polished gearbox frame
• Used 8mm ball bearing, bearing piston head and ball bearing spring guide
• TM-compatible parts - except piston pinion gear
• Gearbox anti-corrosion coating
• Mirco switch for instant trigger response
• Quick Change spring guide has 4 locking tabs instead of 2, which distinguishes it from the existing guide on the market, which additionally secures the spring during shooting
• SDU2.0 programmable MOSFET system that cuts power when current draw is too high
• Metal replica frame, gearbox and bed
• Internal barrel diameter: 6.03 mm
• Hi-Cap magazine: 300bb
• Double-sided fire selector and magazine release

Recommended products to replica:

• magazines: FBP2304, FBP2366
• batteries: Battery Li-ion 2600 mAh 7,4V Stick - T-Plug [VB], Gens Ace 25C 1000mAh 3S1P 11.1V Airsoft LiPo Battery Gens ace G-Tech T-Plug, GEA152S25DGT, Gens Ace 25C 1000mAh 2S1P 7.4V Airsoft LiPo Battery Gens ace G-Tech T-Plug

NOTE: The battery and charger are not included. They must be purchased additionally.

Each replica undergoes a zero inspection. It is checked and shot on a chronometer made by XCORTECH X3200.
