CM.113A AK-74 Tactical Rifle Replica with Eshooter ETU, GEN-2 - Tan [CYMA Platinum]

The CYMA Platinum AK-74 electric airsoft gun features a 395 mm aluminium handguard with RIS rails, an aluminium receiver cover with a top rail, and a folding stock with nine length adjustment positions. Its key internal components include the QSC quick spring change system, GEN-2 V3 gearbox, and Eshooter Kestrel V3 MOSFET/ETU, which facilitate power adjustment and support fast mechanism operation.

Construction and design

The 395 mm aluminium handguard is equipped with RIS rails designed for mounting tactical grips, flashlights and lasers, and other tactical accessories. The handguard is connected to an aluminium receiver cover with an integrated upper RIS rail that allows a red dot sight or optical sight to be mounted.

A mock muzzle device is installed at the end of the outer barrel. The airsoft gun features 14 mm CCW and 24 mm CW threads.

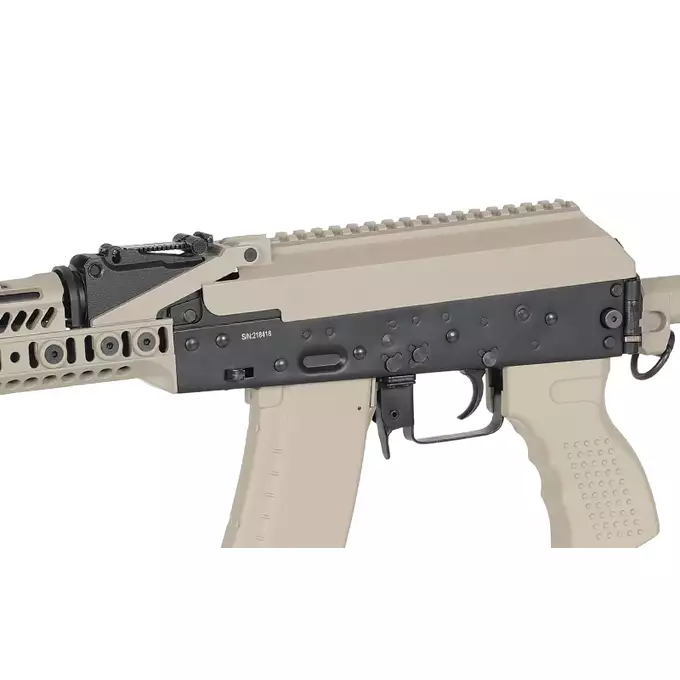

The receiver is made of steel, while the handguard and receiver cover are aluminium. Nylon and zinc alloy are also used in the construction. The serial number is located on the receiver.

Ergonomics and handling

The airsoft gun features a folding stock with nine length adjustment positions. Its length is ~910 mm with the stock set to the first position and ~960 mm when fully extended.

The adjustable cheek rest allows the support position to be adapted to the iron sights or mounted optics. The rubberised butt pad supports stable placement against the shoulder, while a sling attachment point is located near the stock mount.

The fire selector features an additional raised section that facilitates switching between fire modes.

Internals and mechanics

The GEN-2 V3 gearbox is equipped with the QSC quick spring change system, which facilitates spring replacement and adjustment of the airsoft gun's power.

The gearbox features 8 mm steel ball bearings, a piston with a full metal tooth rack, and CNC-machined 13:1 gears in a short-stroke configuration. The mechanism is powered by a short high-torque neodymium motor.

The pneumatic system includes an aluminium silent head set, a steel type 0 cylinder, and a 19.58 mm PTFE nozzle with an O-ring. The steel spring guide is equipped with a bearing.

Electronic system

The Eshooter Kestrel V3 MOSFET/ETU electronically controls gearbox operation.

Power supply

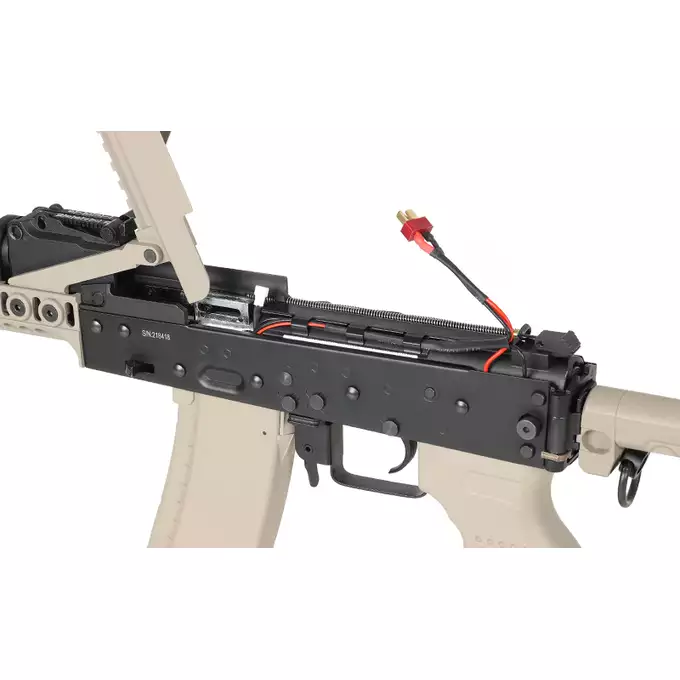

The electrical system uses a T-connect connector, while the battery compartment is located under the receiver cover.

Performance and accuracy

The AK-74 airsoft gun reaches a muzzle velocity of ~400 FPS in its factory configuration. A muzzle velocity adjustment service is available, allowing the selection of a Medium configuration rated at ~350 FPS or a Low configuration rated at ~300 FPS. This allows the airsoft gun to be configured according to the user's requirements and the limits applicable at the selected airsoft field.

The declared rate of fire is ~23 RPS.

The brass AEG inner barrel is 455 mm long and has a diameter of 6.03 mm. The metal AK-type hop-up chamber allows the BB spin and flight path to be adjusted.

Included

• CYMA Platinum AK-74 airsoft gun
• 2 mid-cap magazines, each with a capacity of 150 BBs
• BB speedloader

Recommended accessories

• Magazine: Bulgarian Mid-Cap Magazine for 150 BBs for the AK Series [CYMA]
• 11.1V battery: Battery Li-Po 1200mAh 11,1V 20C - Deans [IPower]
• 7.4V battery: Battery Li-Po 1300mAh 7.4V 25/40C [VB]

Manufacturer

CYMA Platinum is a manufacturer of airsoft guns whose range includes designs based on the AK platform and other popular airsoft standards.
Each replica undergoes a zero-stage inspection! It is checked and test-fired using an XCORTECH X3200 chronograph.
