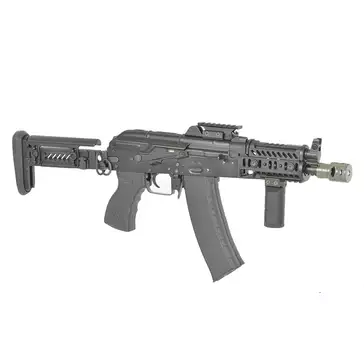

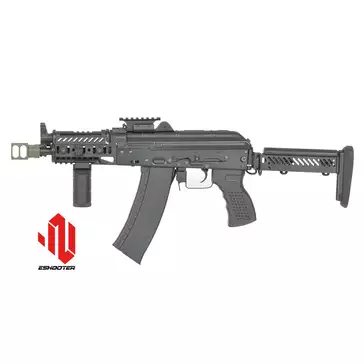

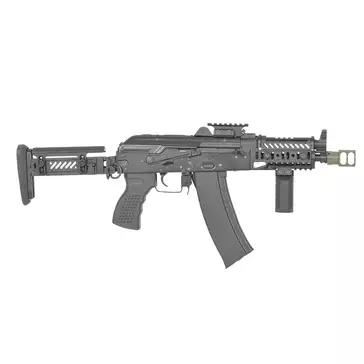

AKS-74U Tactical Rifle Replica CM.113B Eshooter ETU, GEN-2[CYMA]

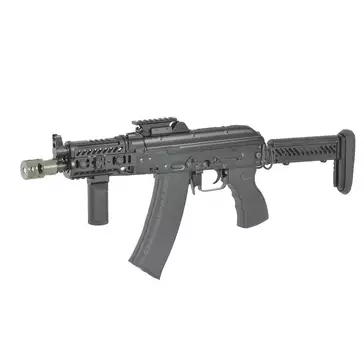

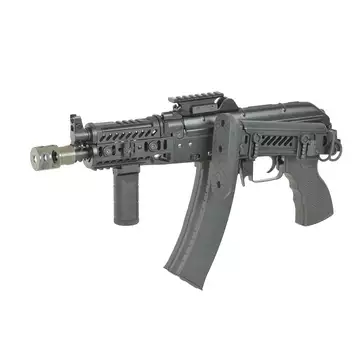

Taiwangun, in cooperation with CYMA, presents a new generation of replicas from the Platinum series, equipped with the improved GEN-2 gearbox. The CM.113B is a tactical AKS-74U (AKSU) replica made of durable materials such as steel and aluminium, which ensures a realistic appearance and solid construction. The model offers a rate of fire of up to 25 rounds per second, a muzzle velocity of 380 FPS, and is equipped with a programmable Eshooter ETU module, allowing fire mode customization and enhancing the replica's functionality. The set includes 2 mid-cap magazines, making the replica ready for use straight out of the box.

Excellent internal construction

Taiwangun, in cooperation with CYMA, presents a new generation of replicas from the Platinum series, equipped with an upgraded GEN-2 gearbox. The CM.113B is a tactical AKS-74U (AKSU) replica made of durable materials such as steel and aluminum, resulting in a realistic appearance and a solid construction. The model offers a rate of fire of up to 25 BBs per second, a muzzle velocity of 380 FPS, and is equipped with a programmable Eshooter ETU module, enabling fire mode customization and increasing the replica's functionality. The set includes 2 mid-cap magazines, making the replica ready to use straight out of the box. @@@

Excellent internal build quality

The CM.113B replica features a FULL METAL construction. Elements such as the receiver, receiver cover, barrel, fire selector lever, sight base, trigger, gas elbow, bolt carrier, gas tube, and muzzle brake are made of high-quality steel and aluminum, increasing durability and realism. The pistol grip and magazines are made of durable polymer.

Tactical and compact design

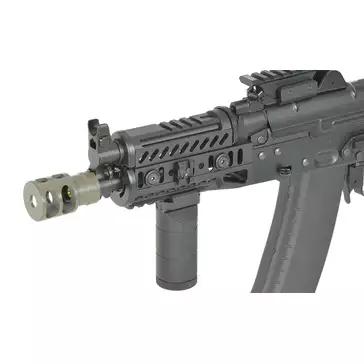

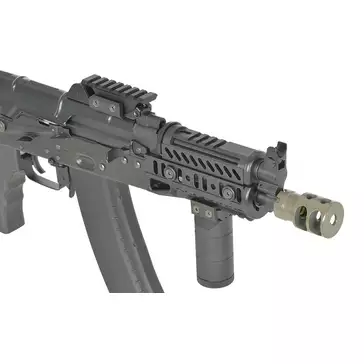

The model is equipped with a distinctive "grizzly" muzzle brake, giving the replica an aggressive look. The standard polymer handguard has been replaced with a lightweight aluminum system compatible with 22 mm Picatinny rails, allowing the mounting of additional accessories such as a flashlight or laser sight.

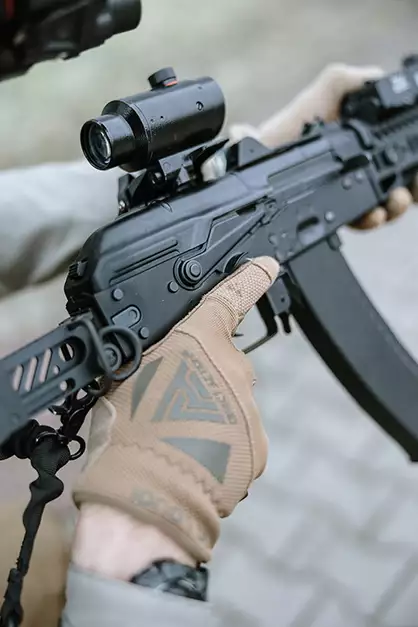

The gas tube cover is also made of aluminum and features an additional Picatinny rail. A side mount has been installed on the receiver cover, allowing the installation of a red dot sight.

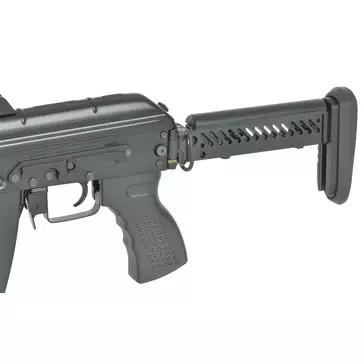

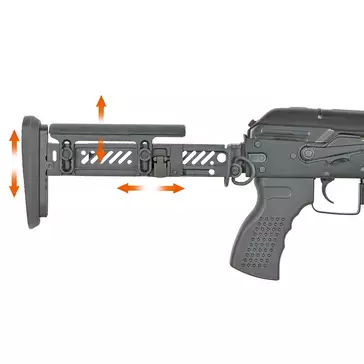

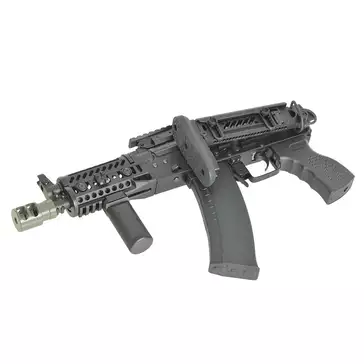

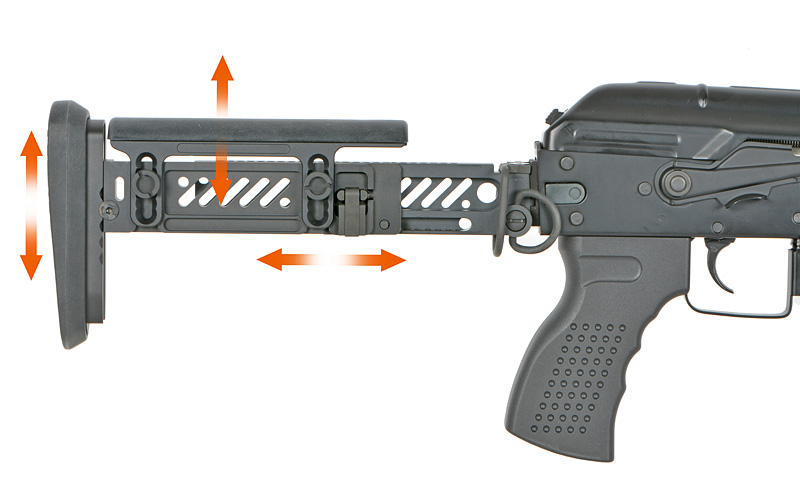

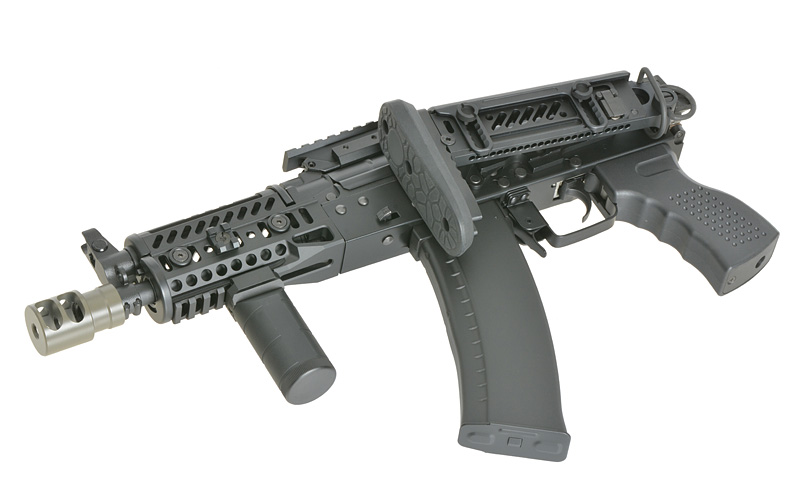

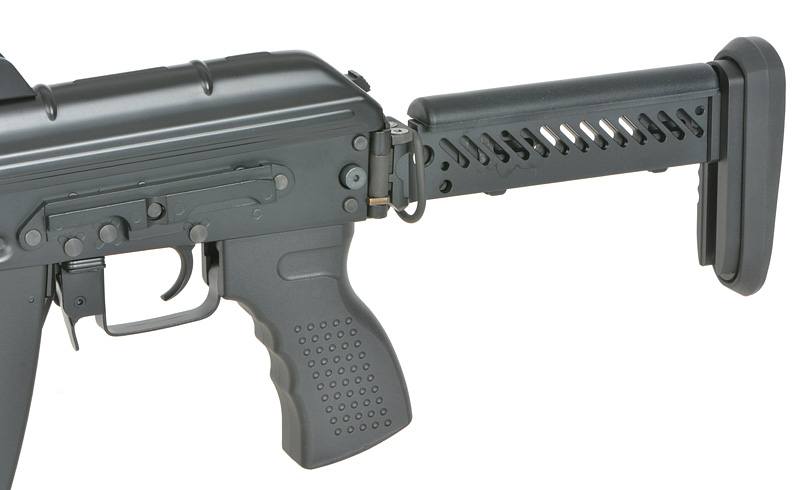

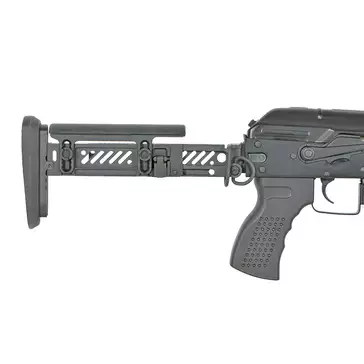

The replica is equipped with a side-folding PT-1 (Gen.2) stock with a wide adjustment range and an ergonomic cheek rest. The upgraded pistol grip improves comfort and handling during use.

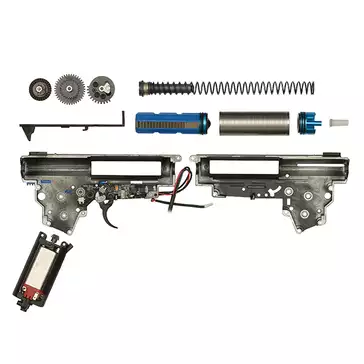

Gearbox V3 GEN-2 - the heart of CYMA Platinum replicas

The new generation of CYMA Platinum replicas is equipped with an upgraded V3 GEN-2 gearbox designed for high performance and intensive use. The construction is adapted for high rates of fire while maintaining durability.
The reinforced gearbox shell features improved bearing seats and radiused stress points, effectively distributing stress. The CNC nozzle is fully sealed and perfectly matched to the cylinder head, improving air seal and shot consistency.
The replica uses 13:1 CNC gears combined with a factory short-stroke setup, resulting in excellent trigger response and high rate of fire. The system runs on 8 mm steel ball bearings, ensuring smooth operation.
The pneumatic system is based on a CNC aluminum set, including reinforced piston and cylinder heads and a full steel rack piston. The construction is complemented by a bearing spring guide.
The QSC (Quick Spring Change) system allows spring replacement without disassembling the gearbox, significantly reducing maintenance time and making it easy to adjust the replica's power.

High Torque motor

The replica is equipped with a neodymium High Torque motor, ensuring fast and stable operation as well as excellent trigger response, even under heavy use.

Accuracy and shot consistency

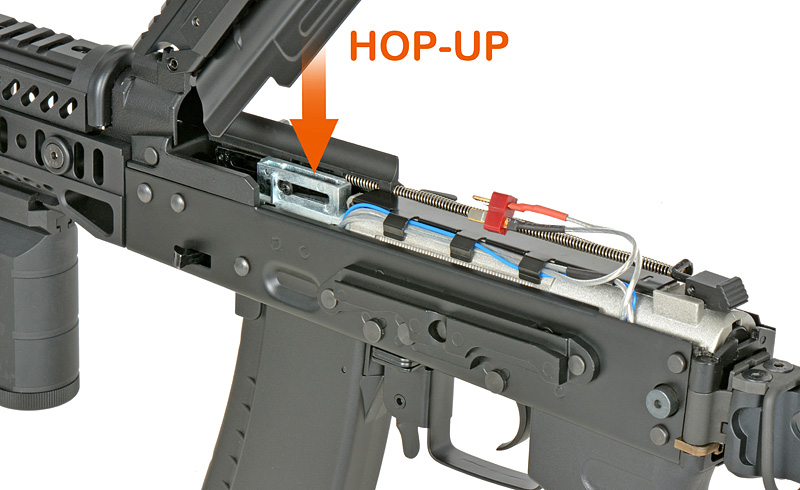

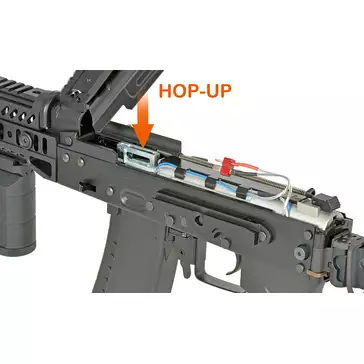

Adjustment is handled by a slider-adjustable hop-up chamber, typical for the AK platform, allowing precise BB flight path tuning.

The installed 6.05 mm precision barrel provides improved grouping and higher shot consistency, giving the user an advantage at medium and long distances.
Barrel length: 255 mm

Eshooter MOSFET

The replica is equipped with an advanced programmable ETU (Electronic Trigger Unit) by Eshooter, offering:

• additional fire modes (BURST, BINARY)
• pre-cocking adjustment
• protection for the mechanism and battery

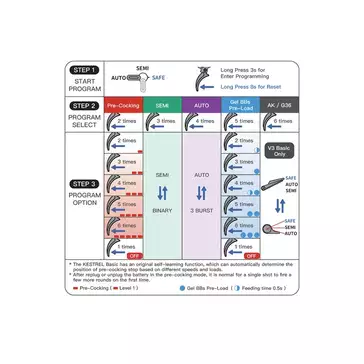

Main functions:

• Easy 3-step programming. Reset available by holding the trigger for 8 seconds.
• 5-level piston pre-cocking adjustment.
• Compatibility with brushless motors and High Speed / High Torque motors.
• Active Brake - gearbox stabilization.
• Motor jam protection.
• Over-discharge and voltage protection (2S minimum 6V, 3S minimum 8.5V, max 17V).

Battery compartment

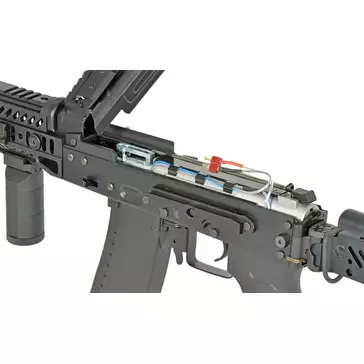

The stick-type battery compartment is located under the receiver cover.

Included:

• AKS-74U CM.113B replica
• 2x mid-cap magazines

Recommended accessories:

Batteries: Gens Ace 25C 1400mAh 3S1P 11.1V Airsoft LiPo Mini T-Plug, Battery Li-Po 1000mAh 11,1V 20/40C - T-connector [VB], Battery Li-Po 1000mAh 7,4V 20/40C - T-connector [VB], Battery Li-Po 1500mAh 11.1V 20/40C [VB]
Magazines: 150rd mid-cap magazine for AK Series [CYMA], 130rd AK47 Reinforced Polymer Magazine - Black [CYMA], 150rd Mid-Cap magazine for AK74/AK-105 - Black [CYMA]
V3+ Charger for LiPo/LiFe 2S/3S [IPower]

Each replica undergoes a zero inspection. It is checked and test-fired using an XCORTECH X3200 chronograph.
