Licensed FN SCAR-H CM.063H Replica with Eshooter ETU, GEN-2 - BLACK [EMG]

The licensed FN SCAR-H airsoft rifle by CYMA Platinum is an electric AEG featuring FN HERSTAL BELGIUM markings on the body. Its key features include an FN Herstal licence with reproduced markings, a QSC quick spring change system and a Kestrel V2 MOSFET/ETU, supporting visual accuracy compared with the original, power configuration changes and electronic control of the mechanism.

FN Herstal licence and markings

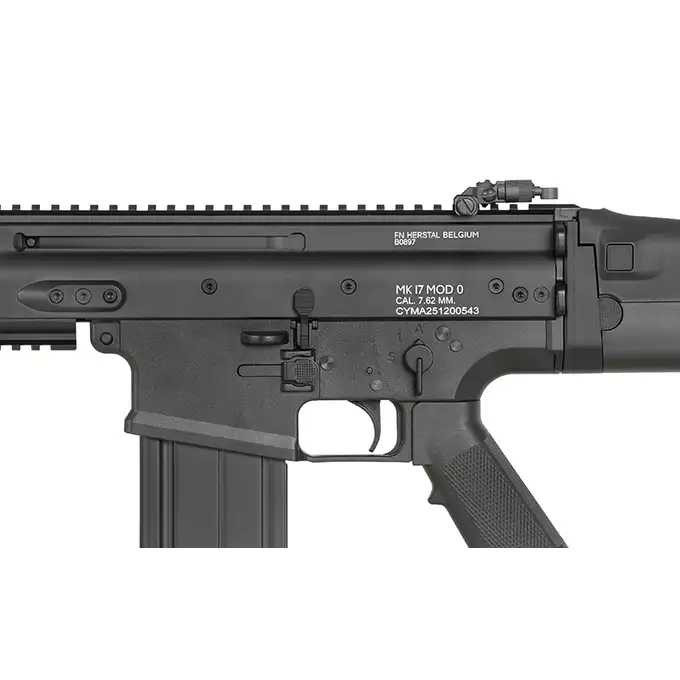

The airsoft rifle is officially licensed by FN Herstal. FN HERSTAL BELGIUM markings are placed on the body, improving the appearance of the construction and its visual accuracy compared with the firearm counterpart. These details are relevant to users who value accurate reproduction of the characteristic features of the SCAR-H platform.

An individual serial number is located on the aluminium upper receiver.

Construction and design

The upper receiver is made of aluminium, while the lower receiver and stock are made of polymer. Steel is used for the external barrel, muzzle device, mock bolt carrier, pins securing the lower receiver and stock, and the charging handle.

An upper RIS rail allows optics to be mounted. The handguard is equipped with two side RIS panels and a lower panel beneath the barrel for mounting additional accessories, including grips and flashlights. The external barrel features a 14 mm CCW thread.

The airsoft rifle is equipped with folding iron sights comprising an aperture rear sight and a front sight. They allow the user to aim without installing additional optics.

Ergonomics and handling

The ambidextrous fire selector and ambidextrous magazine release support operation with either hand.

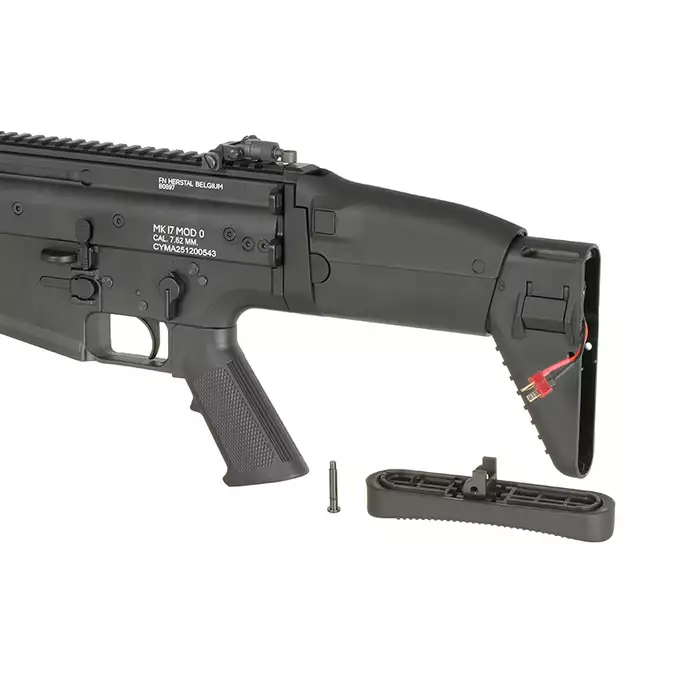

The side-folding stock features six length settings and an adjustable cheek riser. This allows its position to be adapted to protective equipment, installed optics and user preferences.

The airsoft rifle measures ~915 mm with the stock fully extended and ~845 mm with the stock retracted. Folding the stock to the side reduces the length to ~660 mm, making transport and handling in confined spaces easier. The extended stock supports a stable shooting position, while the shorter configurations make the airsoft rifle easier to use during CQB games and near obstacles.

The weight without a magazine is ~3094 g. The mass of the construction supports stable handling while aiming, while the adjustable stock helps adapt its position to user preferences.

Ambidextrous sling attachment points are positioned near the stock mount and behind the gas block. This arrangement allows the sling mounting position to be selected according to the preferred carrying setup.

Internal parts and mechanics

The airsoft rifle uses a V2 Long gearbox designed for the SCAR-H platform. The QSC quick spring change system located in the gearbox makes it easier to change the power configuration without rebuilding the entire mechanism.

The internal system includes 8 mm steel ball bearings, a piston with full steel teeth and CNC gears with a 13:1 gear ratio and short-stroke modification. Power is supplied by a long high-torque motor with neodymium magnets.

The pneumatic system uses a silent head set, a V2 Long type 3 cylinder with a teardrop-shaped port and a 28.22 mm Teflon nozzle sealed with an O-ring. The steel spring guide is fitted with a bearing.

Electronic system

The Kestrel V2 MOSFET/ETU electronically controls the operation of the airsoft rifle. The wiring terminates in a T-connect plug, and the battery compartment is located in the stock.

Performance and precision

The brass AEG inner barrel is 370 mm long and has a diameter of 6.03 mm. The airsoft rifle uses a non-standard polymer SCAR hop-up chamber.

The rate of fire is ~27 RPS. The factory muzzle velocity is ~390 FPS. The airsoft rifle is also available in optional power variants:

• Medium: ~350 FPS
• Low: ~300 FPS

Power supply

The battery compartment is located in the stock, and the wiring uses a T-connect plug.

Package includes

• FN SCAR-H CYMA airsoft rifle
• 2 mid-cap magazines with a capacity of 210 BB's each
• BB speedloader

Recommended accessories

• 11.1V LiPo battery: Battery Li-Po 1100mAh 11,1V 20C - Deans [IPower]
• 7.4V LiPo battery: Battery Li-Po 1100mAh 7,4V 15/30C - Deans [VB]

Manufacturer

CYMA Platinum is a manufacturer of airsoft guns based on popular airsoft platforms. The licensed FN SCAR-H combines the characteristic construction of the platform with an extensive internal mechanism and RIS rails for mounting additional equipment.
Each replica undergoes a zero-stage inspection! It is checked and test-fired using an XCORTECH X3200 chronograph.
