BY-817 11" Assault Rifle Replica - Black [Double Bell]

Double Bell  817 | Available
Our price*: $219.78

Choose the FPS for your replica:

Standard

400

Medium

350

+$1.00
Low

330

+$1.00

In other colors:

  • Forms of delivery

    Choose country and enter zip code to see shipping costs.

  • Technical data

    Manufacturer: Double Bell
    Code: 817
    EAN 5904420010777
    Weight 2960 g
    Replica Model 416 Airsoft Gun
    Color black
    Material aluminum, polymer, steel
    Magazine model hi-cap
    Fire mode auto, single
    Magazine material steel
    Accumulator included in set NO
    Accumulator connector type small Tamiya
    Gearbox version v.2
    Bearings type steel ball-bearing
    Bearings diameter 8 mm
    Warranty period 12 months
    Camouflage black
    Ammo .23g, .25g
    Serial number YES
    Length 700 mm
    Magazine capacity 300 BBs
    Length of internal barrel 290 mm
    Muzzle energy 1.52 J
    Muzzle velocity 400 FPS with 0.20g BBs
    Diameter of Internal barrel 6,03 mm

  • Reviews

    • - 20.08.2024 wrote:
      I really like the externals, very solid and very clean looking. Honestly that's all I cared about as I was gutting most the internals and building a solid ssg. The gearbox had some excellent compression pieces that are similar quality to maxx, with the cylinder head being something I'd change. The gearbox was pretty beefy and felt very solid but thats all I can speak on how structurally sound it is. The gears and trigger contacts were what you'd expect and nothing too exciting, but I was surprised to see 8mm bearings instead of solid bushing. I still can't say I wouldn't change them or not if you're doing internal work but they seem good enough. My main problem comes from the gearbox shell, specifically where the spur gear is. You will need to remove material from the shell to use your own gears. Now this may only be with rocket 13:1s or all but this can be a minor annoyance. More than likely you have a rotary tool/dremel laying around to easy solve this problem yourself. All in all this is a very solid body to use with some surprisingly good internals for the price tag. I would get this for a cheaper alternative than the VFC version, but if you don't plan on upgrading it then don't expect similar performance out the box. Think of it like a stock king arms or maybe the tier below cyma's platinum line. Other than my small gripe, I would recommend this gun.
      Opinion rating: 3
    • - 09.08.2024 wrote:
      That rifle became to my favourite one after the first shots.
      I think the best about it is the iron sights. In flip down position they just not disturb you, and if your red dot or collimator have an issue, you can just flip them up, and they enough high to comfortably aim without breakin your neck.
      Another good thing is the two side mag release button, which could make the mag change more tactical and quicker in any situation.

      There were two probelms: one of them was the dust cover, that made by really weird plastic and most of the time it did not opened if I wanted to change the hop up's position. Other one was the rear iron sight. It have been curved really bad, maybe by the cheap carboarding, but I zeroed it anyway, it's not perfomed really well on longer ranges.
      Opinion rating: 0
    • - 18.03.2024 wrote:
      This is absolutely amazing AEG, especially taking into account very affordable price. One of the best value for money acsilable on the market if you seaexh for AR/416 platform.

      Pros:
      + Good quality of metal body
      + Light weight metal quadrail (comfortable balance)
      + Rotary hopup
      + Stable performance 1.48-1.5J
      + Bolt catch/ release function
      + good internals incl.metal head and metal sealed nozzle
      + well- built overal & very affordable

      Cons:
      - stock pad is plastic. No rubber pad.
      - easy to scratch- paint quality is not perfect
      - High cap mag instead of mid cap in the box
      - No Mosfet or at least mictoswitch (fair due to low price)

      I played with this gun on the weekend. It has good accuracy and absolutely universal. Can be used in the forest and in CQB.
      I definitely recommend it both for newcomers and for advanced players who want to make a custom-built.

      Opinion rating: 1
    • - 25.01.2024 wrote:
      very solid replica, good metal construction, works perfectly fine with 7.4 and 11,1 v baterrys altho the conector type is mini tamya i made a quick change to t-dean and it works just perfect.
      no sling atachment point but still easy to fix and that even depends on the sling you have.
      the plastic parts are solid the metal parts are good, there is just a lil issue with the sights but if u put an atachment like a red dot also fixes that.
      Opinion rating: 0
    • - 29.12.2023 wrote:
      AEG really solid and well finished. Budget friendly and above average chronograph values.
      The only flaws are a ris with a little bit of play (easily fixed) and mine arrived without the motor height adjustment screw.
      Opinion rating: 0
    • - 12.12.2023 wrote:
      The gun is amazing, came in one piece nothing broken. And work amazingly, very responsive trigger when using a 7.4v lipo. Only down side is no sling attachment points, you have to buy a sling adapter plate. Aside from that all around great gun.
      Opinion rating: 0
    Add review

  • Ask for item

    The administrator of your personal data is \ KRAKMAN P.Kiepura, K.Michalik Sp. k. with its registered office in Kraków, ul. Półłanki 18, 30-740 Kraków, NIP: 6793082897, REGON: 122593008. Personal data will be processed only in order to establish contact with you and legally justified purposes of the controller. Providing your personal data by is voluntary but also necessary to contact you. Detailed information about the processing of your personal data can be found in ourPrivacy policy on the rules of processing personal data. Fields marked * are required

Save in set

The black-colored Double Bell 817 airsoft carbine is an excellent representation of a 5.56 assault carbine from a renowned German firearms manufacturer, widely used by various special forces units around the globe, including the Polish JWK and JW Grom.

Renowned Company.

Airsoft Double Bell is a respected Airsoft weapon replica manufacturer based in Asia. They specialize in crafting realistic firearm replicas that are popular within the airsoft community. Double Bell is known for their attention to detail and high-quality craftsmanship, resulting in replicas that faithfully replicate the original firearms.

Modularity and Mobility

Key components such as the bolt chamber, trigger chamber, handguard, external barrel, stock guide, flash hider, gas regulator, ambidextrous magazine release, ambidextrous bolt catch, charging handle, and stock nut are made from aluminum and lightweight alloys. The entire assembly is precisely fitted and adequately protected against corrosion. The grip and stock are reinforced with high quality polymer.

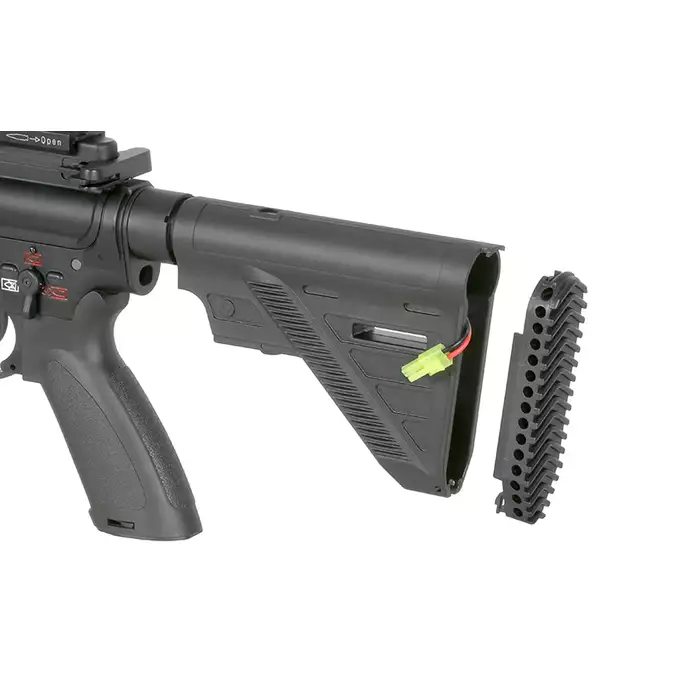

Carbine 817 is equipped with a Picatinny 22mm rail system on the bolt chamber and handguard, enabling the attachment of various accessories such as red-dots, grips, tactical flashlights, and laser pointers. Ergonomics are ensured through a 6-position adjustable stock, allowing the carbine to be tailored to the user's ergonomics.

Reliable Mechanism

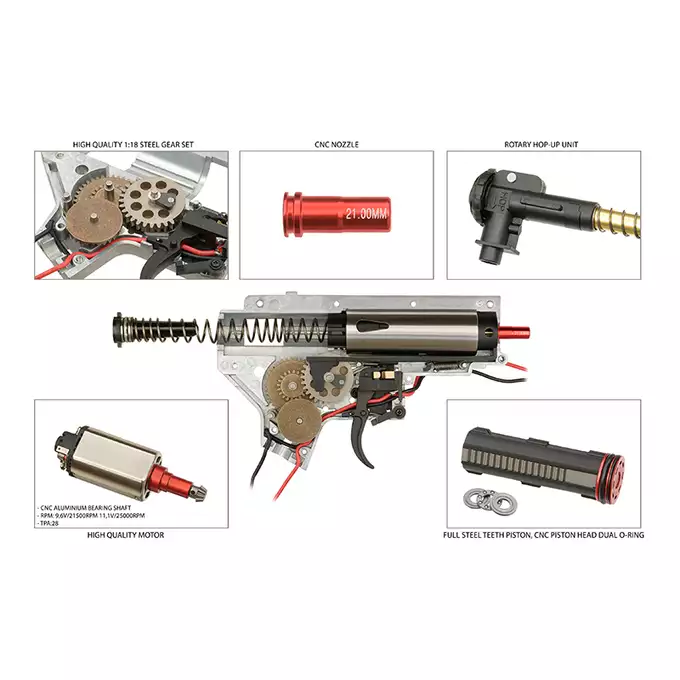

The 817 replica features a reinforced V2 gearbox with a quick spring change system. Inside, you can find a set of reinforced steel 18:1 gears, mounted on 8mm ball bearings, ensuring smooth operation. The piston features a full-metal tooth and operates within a type 1 piston head. Compression is provided by a reinforced polymer rotary hop-up chamber.

The kit includes:

  • The airsoft rifle 817
  • Folding sight

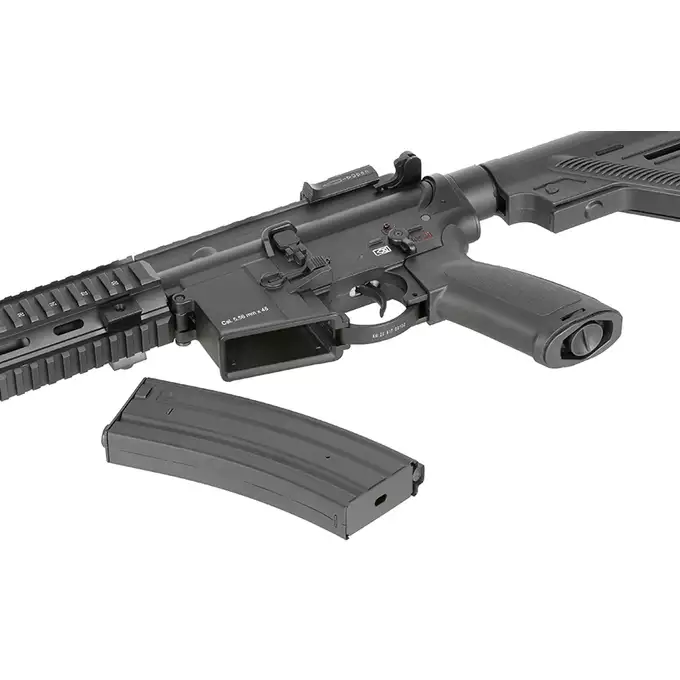

  • Hi-cap 300 BBs magazine

Here are the products we have selected that perfectly match the replica:

Every replica pass initial check up. It's being checked and overshooted on XCORTECH X3200 chronograph.
