CM.052A, GEN-2 [CYMA]

The CM.052A GEN-2 machine gun replica from CYMA is an electric RPK-74M replica with a side-folding stock and a reinforced V3 gearbox configuration. The GEN-2 series, V3 gearbox with quick spring change system, and CYMA V3 MOSFET system support stable operation in a fire support role.

Construction and design

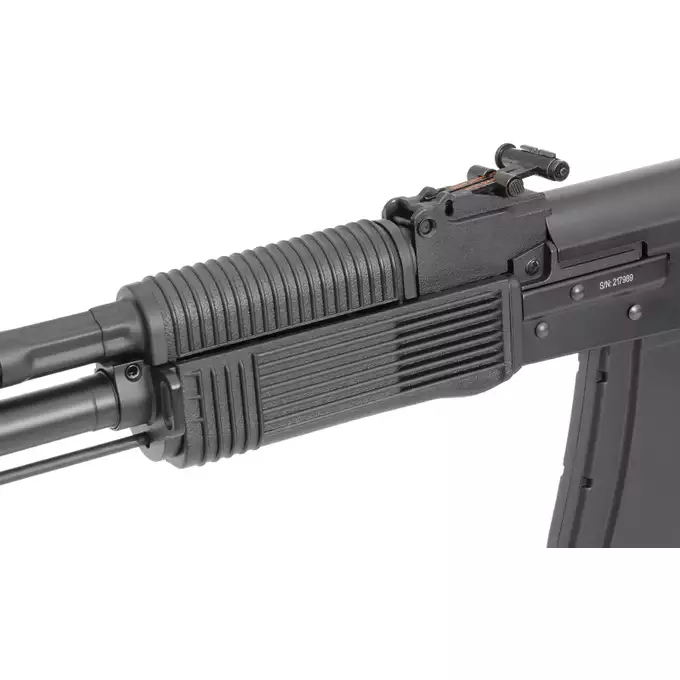

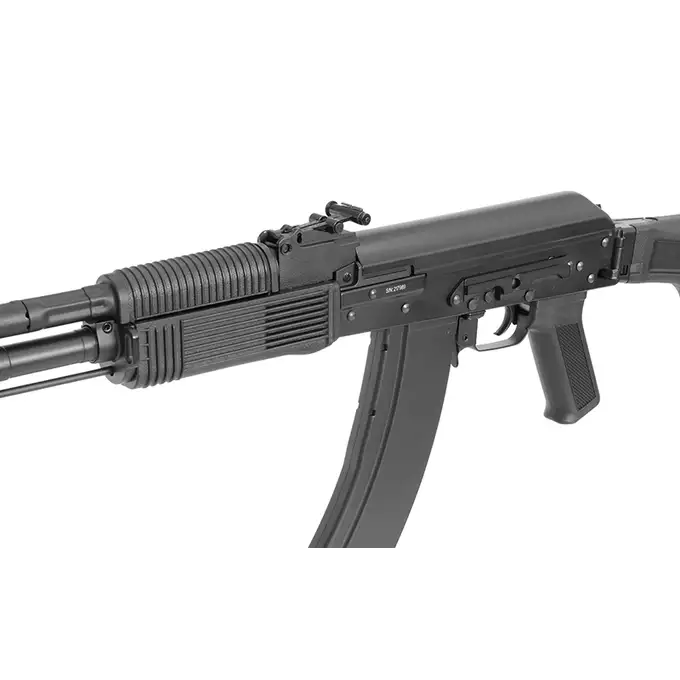

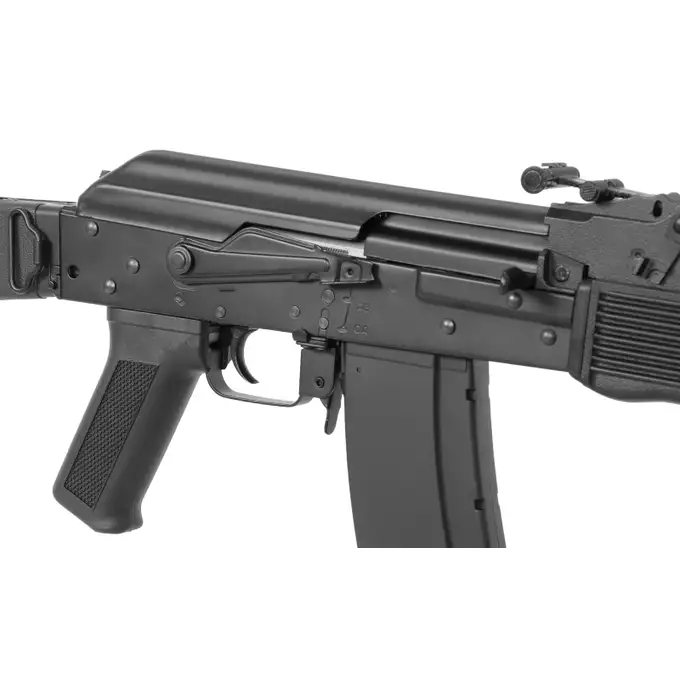

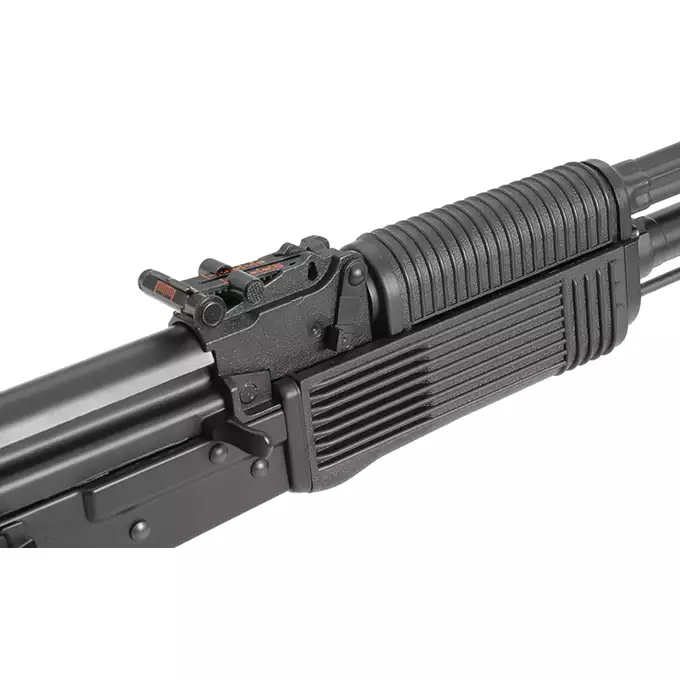

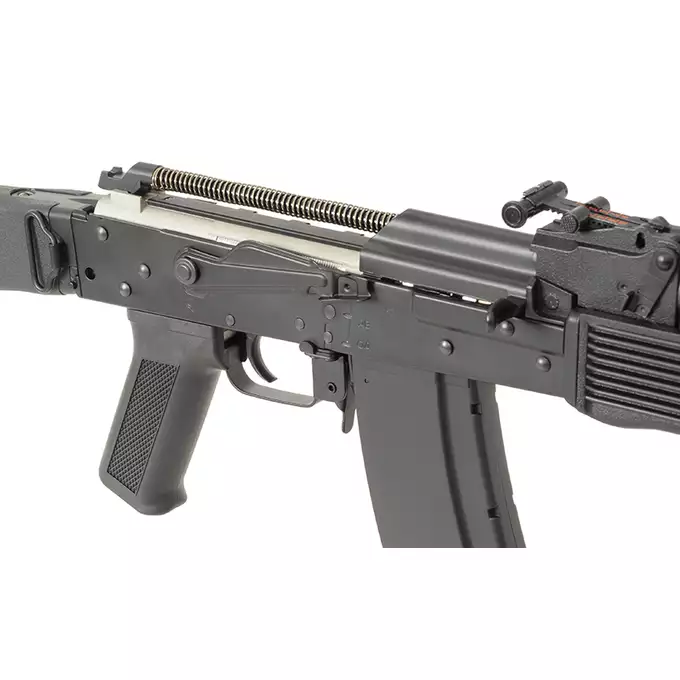

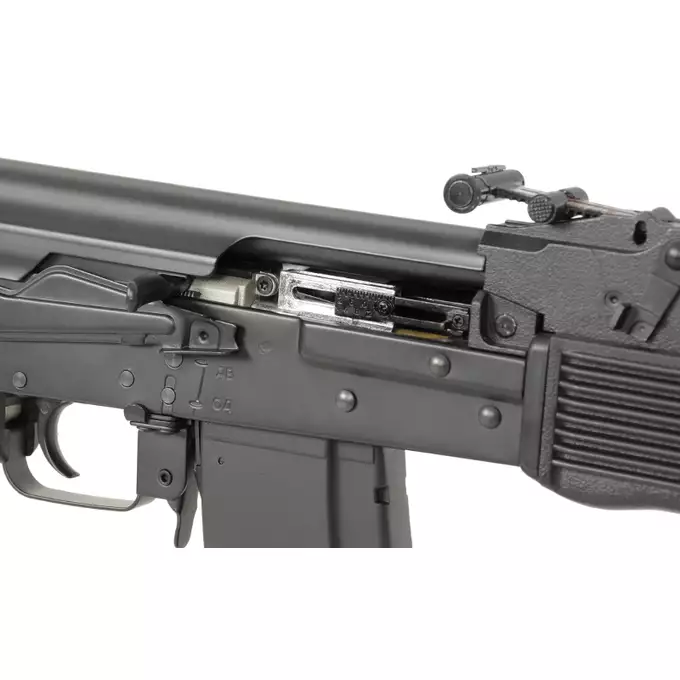

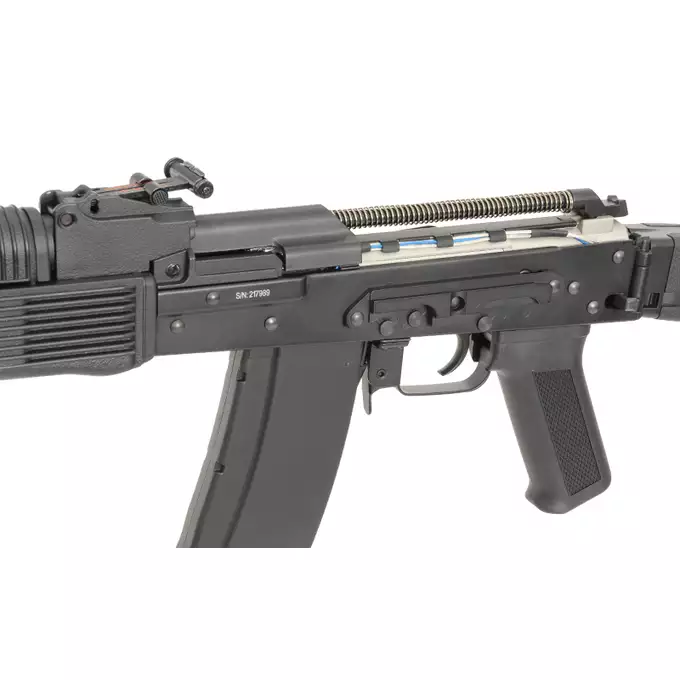

The CM.052A GEN-2 is based on the RPK-74M design, a machine gun built around the AK platform and adapted for intensive support fire. The side-folding stock allows the replica's length to be reduced during transport and makes carrying easier.

The construction combines polymer and metal, including steel and ZnAl. Steel components include the bipod, flash hider, receiver with top cover, trigger guard, magazine catch, and cleaning rod. Polymer is used for the stock, handguard, pistol grip, and magazine.

The 14 mm CCW thread on the outer barrel enables the installation of compatible muzzle devices. The serial number is located on the left side of the receiver.

Ergonomics and handling

The polymer folding stock supports more convenient handling during transport. The bipod allows the replica to be stabilized in a supported position, which is important with a longer replica design and when used in a support role.

The Hi-Cap magazine with an 800 BB capacity allows longer fire without frequent magazine changes. The set includes 2 magazines, increasing the available ammunition supply.

Internal parts and mechanics

The replica uses a GEN-2 V3 gearbox with a quick spring change system inside the gearbox. This system makes it easier to adjust the replica's power to game requirements or organizer limits.

Inside, the replica features 8 mm steel ball bearings, 18:1 gears, and a piston with full steel teeth. The pneumatic system includes an aluminum cylinder head and piston head, a steel type 0 cylinder, and a 19.7 mm Teflon nozzle.

The steel bearing spring guide supports stable operation during the firing cycle. The short High Torque motor provides the correct torque for the replica's configuration.

Electronic system

The model is equipped with a CYMA V3 MOSFET system, which supports the electrical system and improves trigger response.

The rate of fire is 20 RPS, allowing the replica to be used as a machine gun for suppressive fire and controlling the direction of an advance.

Hop-up and inner barrel

The replica is equipped with a metal hop-up chamber. Adjustment allows the BB flight path to be adapted to the ammunition used and field conditions.

The 6.03 mm brass inner barrel with a length of 640 mm supports stable BB guidance along an extended barrel section. The long barrel configuration suits the support-oriented character of the replica.

Performance and precision

The factory FPS is ~390 FPS. This value supports the use of the replica at medium and longer distances, in line with the role of a machine gun in airsoft games.

The combination of a long inner barrel, hop-up chamber, and stable pneumatic system supports shot-to-shot consistency in both semi-automatic and automatic fire.

Power supply

The battery compartment is located inside the polymer side-folding stock. The replica uses a T-connect plug.

Package includes

• CM.052A GEN-2 machine gun replica CYMA
• 2 Hi-Cap magazines, 800 BB capacity

Recommended accessories

• Magazine: Cargador Hi-Cap 500bb para AK74/AK-105 - Negro [CYMA]
• 7.4V battery: Batería Li-Po 2300mAh 7,4V 20 / 40C - T-connector [VB]
• 11.1V battery: Batería Li-Po 2200mAh 11,1V 20 / 40C - T-connector [8FIELDS]
• Charger: Cargador V3 + para LiPo / LiFe 2S / 3S [IPower]

Manufacturer

CYMA is an airsoft replica manufacturer known for a wide range of designs based on AK, AR, and support weapon platforms. The GEN-2 series develops the brand's proven solutions with stronger internal components and systems supporting easier maintenance handling.
Each replica undergoes an initial inspection. It is checked and test-fired on an XCORTECH X3200 chronograph.
