CM.113 AKM Tactical Rifle Replica with Eshooter ETU, GEN-2 - Black [CYMA Platinum]

The CM.113 AKM GEN-2 airsoft rifle by CYMA Platinum is an AEG rifle featuring an aluminum RIS handguard, a folding stock, and a steel upper receiver with an integrated upper rail. The AKM airsoft rifle uses a GEN-2 V3 gearbox, 13:1 CNC gears in a short-stroke configuration, and a Kestrel V3 system, supporting fast mechanism operation and the expansion of the setup with additional accessories.

CM.113 AKM GEN-2 construction

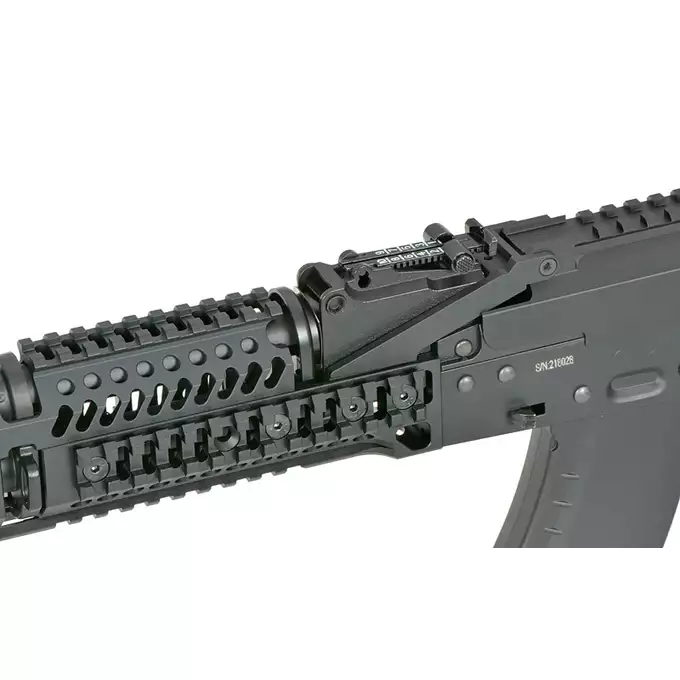

The airsoft rifle is made of polymer, aluminum, and steel. The steel upper receiver features an integrated upper RIS rail designed for mounting optics. The receiver cover and handguard are made of aluminum.

The RIS rails on the handguard allow compatible accessories to be installed and the rifle setup to be adapted to the user's requirements. The front section of the airsoft rifle is completed by a dummy muzzle device.

An individual serial number is located on the lower receiver.

Ergonomics and handling

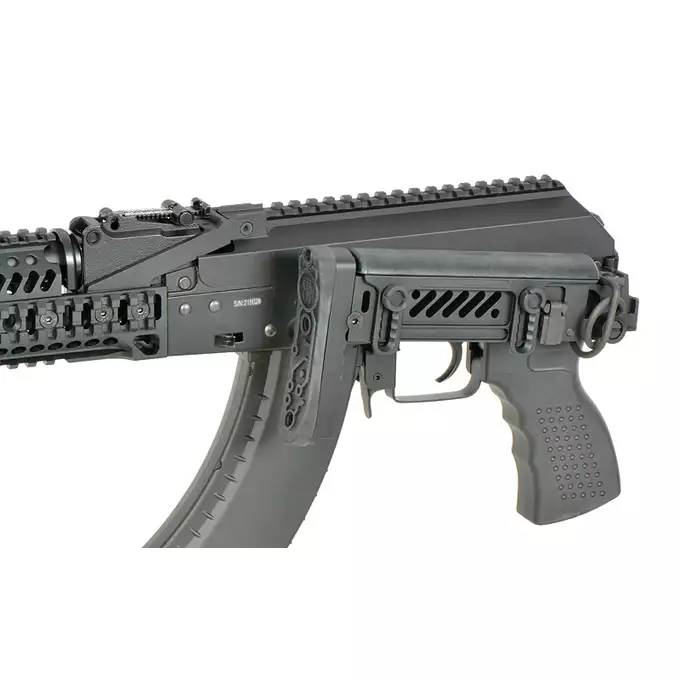

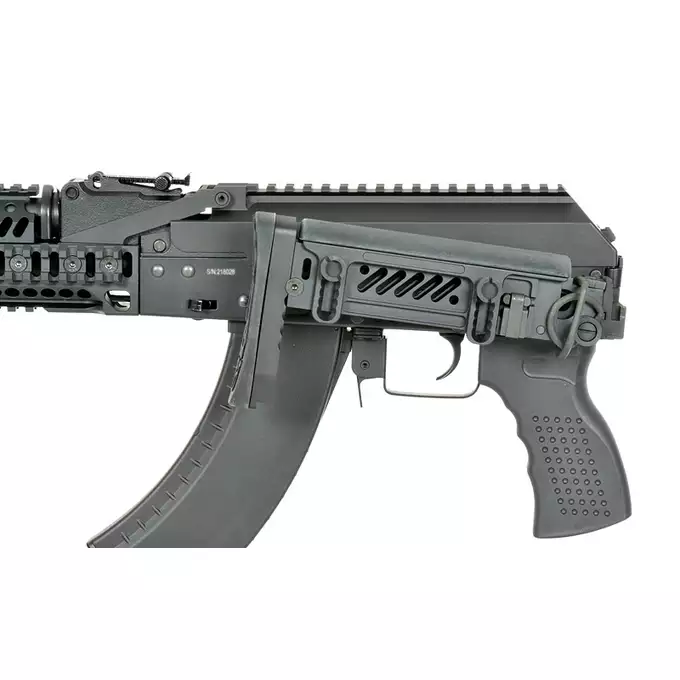

The folding stock reduces the length of the airsoft rifle for transport and makes it easier to handle in confined spaces. The adjustable cheek rest allows the head support position to be matched to the installed sights.

The rubber stock pad supports stable placement against the shoulder. The airsoft rifle is also equipped with a sling attachment point.

An additional protrusion on the fire selector makes it easier to change the firing mode.

GEN-2 V3 gearbox and mechanics

The GEN-2 V3 gearbox features a quick spring change system. The mechanism uses 13:1 CNC gears in a short-stroke configuration and 8 mm steel ball bearings.

The piston features full steel teeth. The pneumatic system includes an aluminum piston head, an aluminum cylinder head, and a steel type 0 cylinder.

The 19.58 mm Teflon nozzle is sealed with an O-ring. The steel spring guide is fitted with a bearing, while the mechanism is driven by a short high-torque neodymium motor.

Kestrel V3 electronic system

The Kestrel V3 system controls the operation of the mechanism. The electrical system uses a T-connect connector, and the airsoft rifle achieves a rate of fire of ~23 RPS.

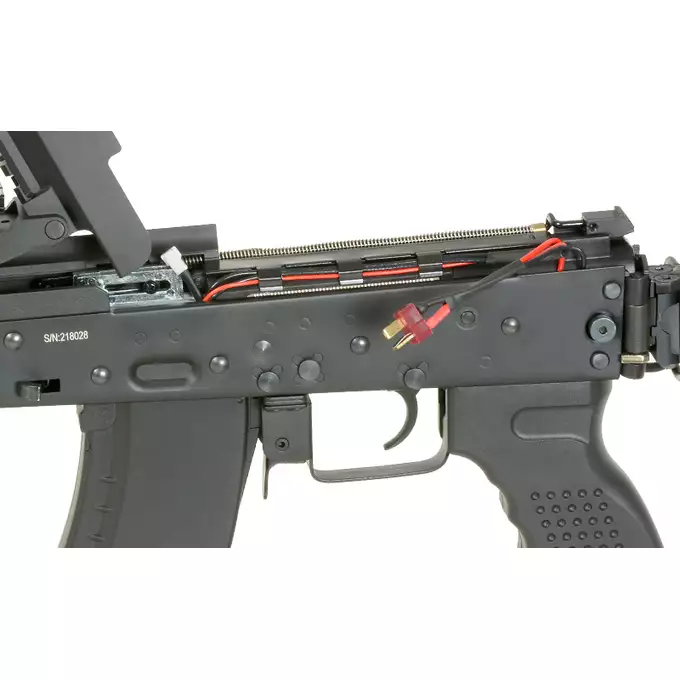

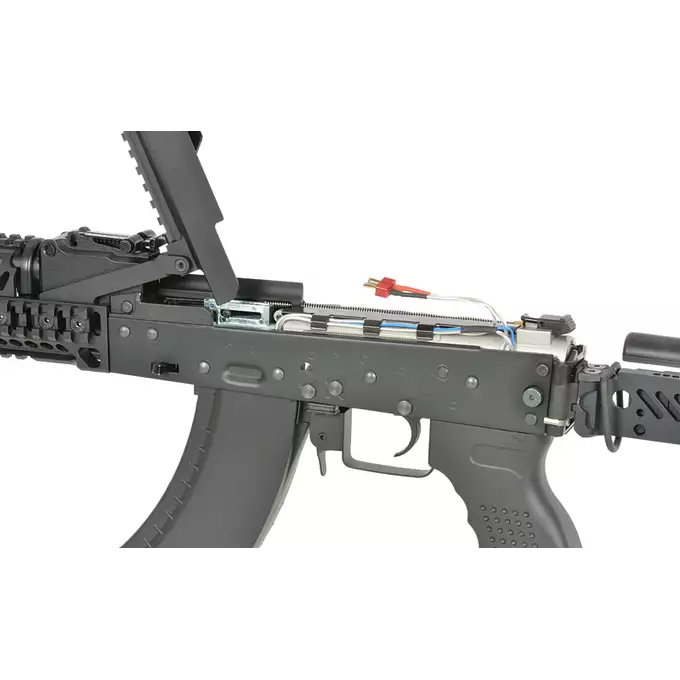

The battery compartment is located under the receiver cover.

Performance and hop-up system

The factory muzzle velocity of the AKM airsoft rifle is ~400 FPS. The brass AEG inner barrel has a length of 455 mm and a diameter of 6.03 mm.

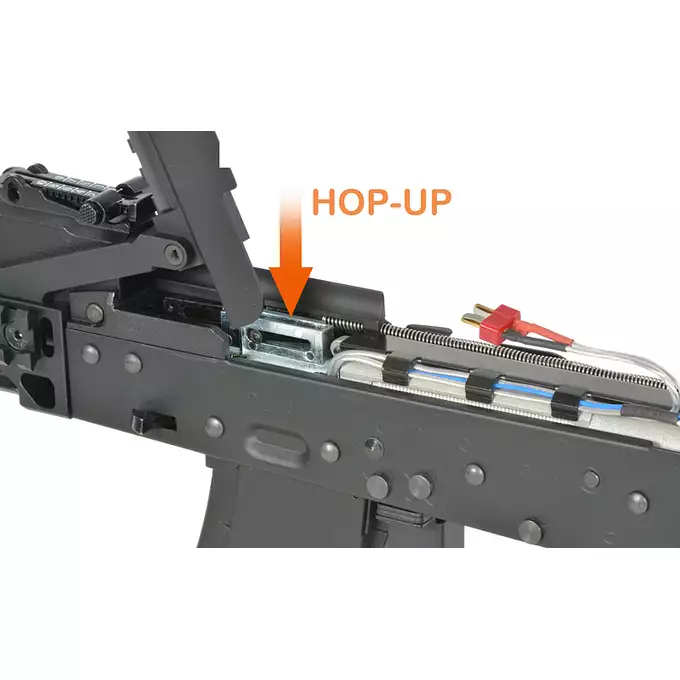

The metal AK-standard hop-up chamber allows the BB spin to be adjusted to modify its flight path.

Package includes

• AKM GEN-2 airsoft rifle
• 2 mid-cap magazines with a capacity of 150 BBs each
• BB speedloader

Recommended accessories

• Magazines: Bulgarian Mid-Cap Magazine for 150 BBs for the AK Series [CYMA]
• 11.1V battery: Batería Li-Po 1200mAh 11,1V 20C - Deans [IPower]
• 7.4V battery: Batería Li-po 1300mAh 7,4V 25 / 40C [VB]
• Charger: Cargador V3 + para LiPo / LiFe 2S / 3S [IPower]

Manufacturer

CYMA Platinum is a series of airsoft guns equipped with advanced mechanical and electronic components. GEN-2 combines a V3 gearbox, the Kestrel V3 system, and components designed to support a fast mechanism response.
Each replica undergoes a zero-stage inspection! It is checked and test-fired using an XCORTECH X3200 chronograph.
