Cyma Platinum  FB4132EG2PL | Nicht verfügbar
  • Lieferformen

    Geben Sie Land und Postleitzahl ein, um die Versandkosten anzuzeigen

  • Technische Daten

    Hersteller: Cyma Platinum
    Code: FB4132EG2PL
    EAN 5904420026426
    Gewicht 2780 g
    Replica Model Softair AR15 / M4 / M16
    Farbe schwarz
    Material aluminium, polymer
    Magazinart mid-cap
    Feuer Art auto, double, semi
    Akku im Set NEIN
    Akku Stecker Art T-connerctor
    Gearboxa Art v.2
    Lager Art stahl Ball
    Lager Durchmesser 8 mm
    Garantiezeit 12 Monate
    Hop up einstellbar
    Camouflage black
    Munition .25g, .28g, .30g
    Seriennummer JA
    Länge mm 500
    Kapazität des Magazins 190 BB
    Innenlauflänge mm 190
    Energie der Projektilmündung 1.05 J
    Mündungsgeschwindigkeit 340 FPS mit 0,20g BBs
    Innerer Laufdurchmesser mm 6.03
    ETU MOSFET TAK
    Schneller Federwechsel JA
  • Meinungen

Daniel Defense License — Entdecken Sie auch die anderen Produkte dieser Serie.

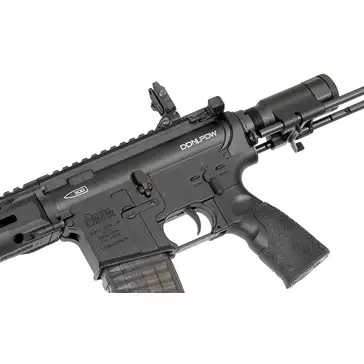

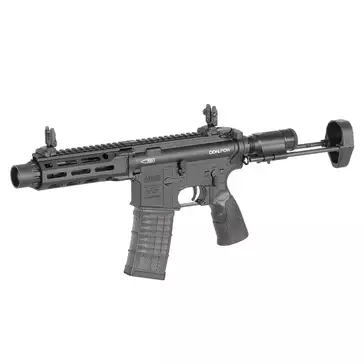

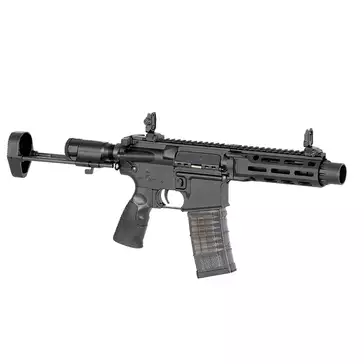

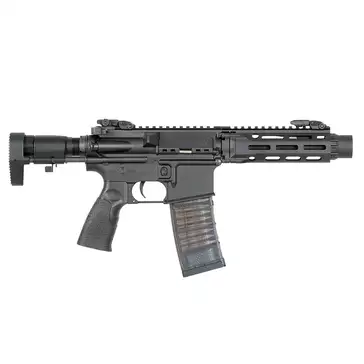

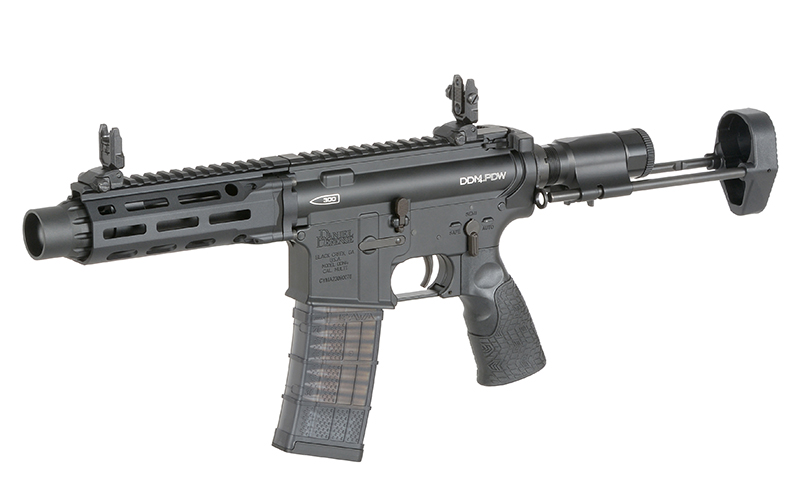

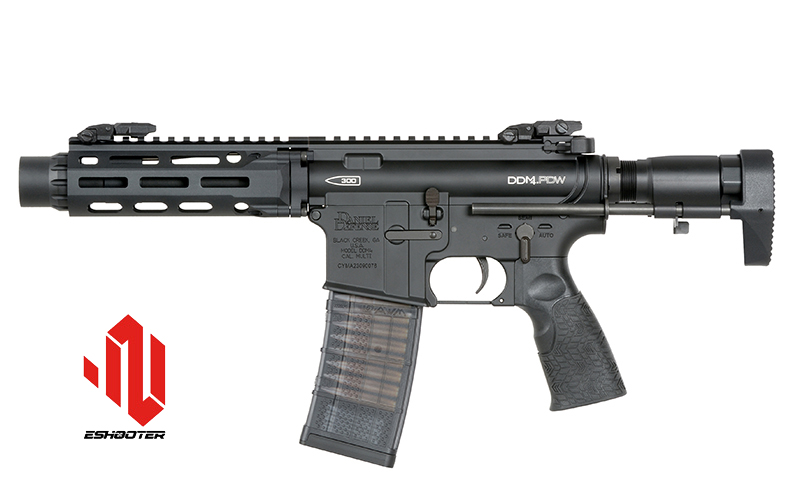

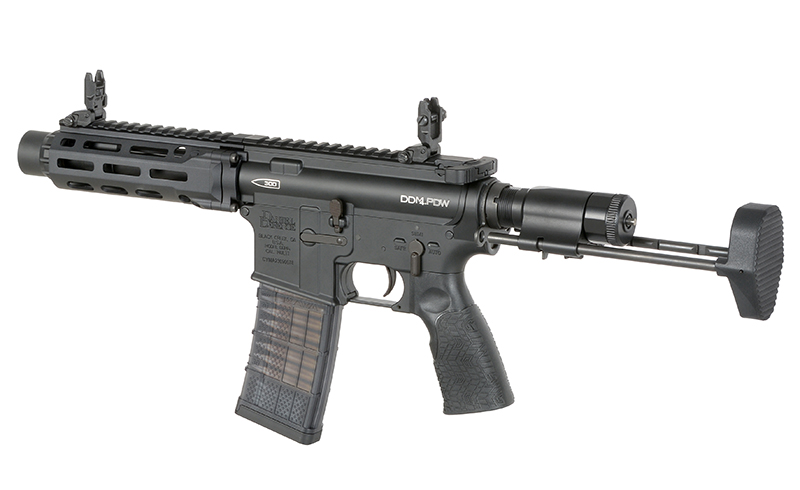

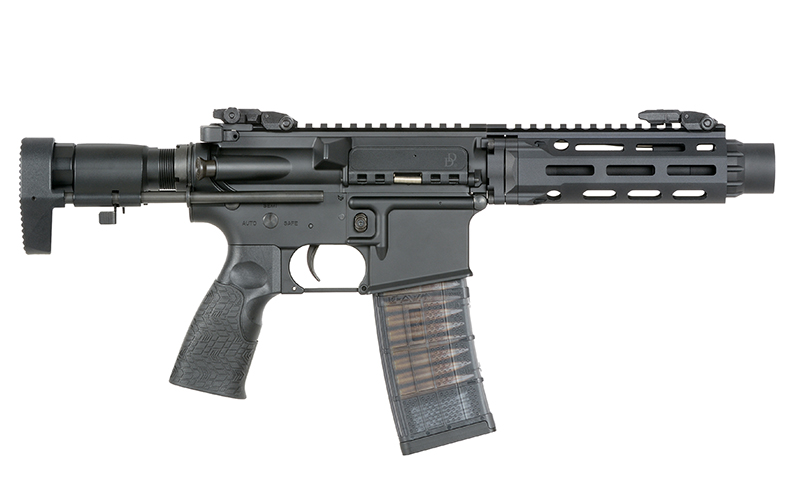

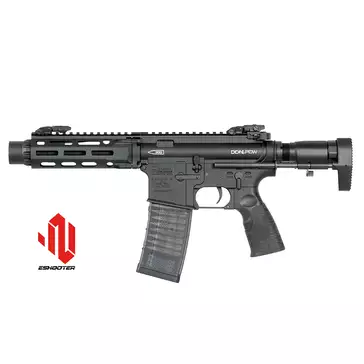

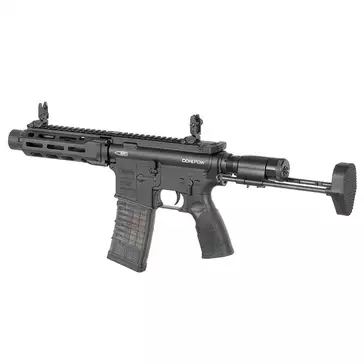

Licensed CM.105B DDM4 PDW SBR, an ultra-compact AR15 platform from Daniel Defense. The replica was created in cooperation between CYMA and EMG. The DDM4 PDW is not only a lightweight, compact, and easy-to-transport airsoft carbine, but also

delivers a highly enjoyable shooting experience. The replica features a rate of fire of 27 rounds per second and a programmable ETU module from Eshooter, allowing customization of firing modes, expanding functionality, increasing

durability, and protecting the internal mechanism.

Licensed DD configuration

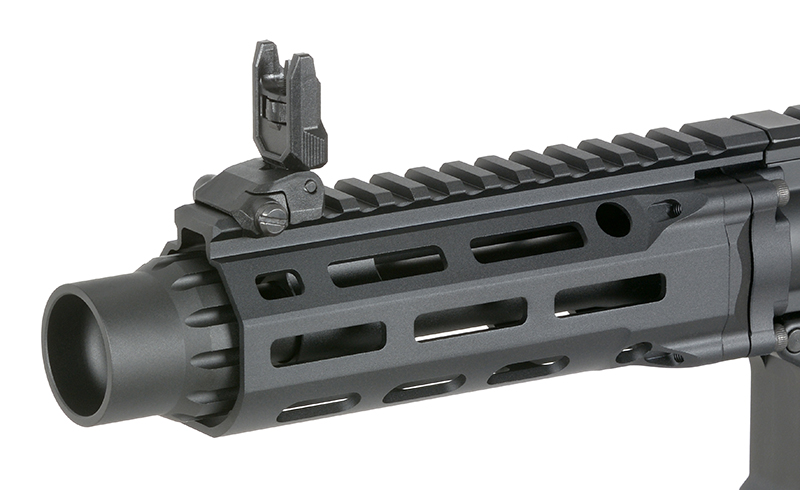

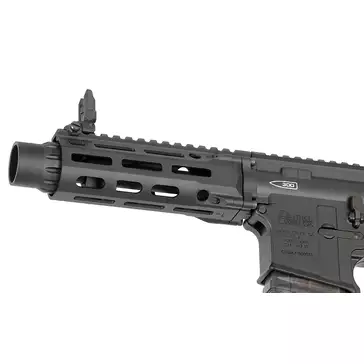

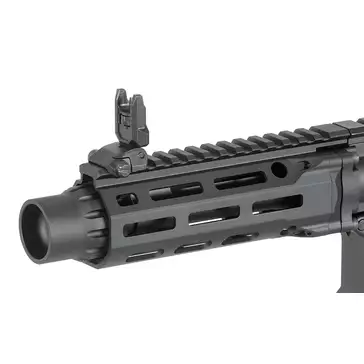

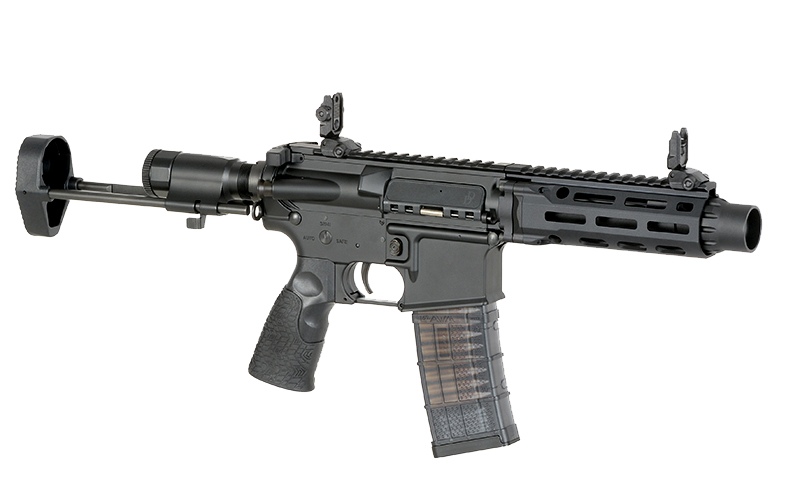

On the upper receiver, the DDM4 PDW is a modern replica that combines functionality, durability, and attention to detail, offering an outstanding user experience. It is equipped with a lightweight and ergonomic 6-inch MFR XL aluminum handguard

with M-LOK accessories and tactical lights, compatible with the M-LOK standard, allowing easy installation of a wide range of dedicated accessories and tactical

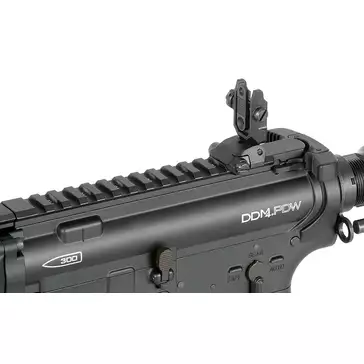

flashlights. The Picatinny rail system, located on both the upper receiver and the handguard, allows easy mounting of various optical sights, adapting the replica to individual user preferences.

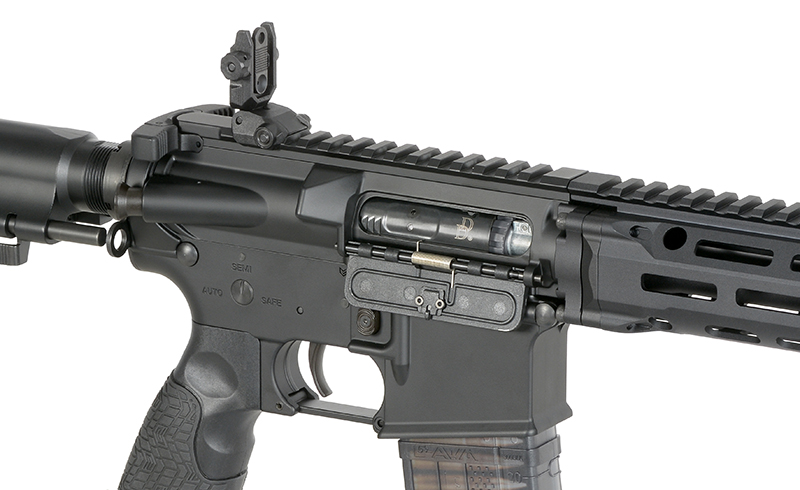

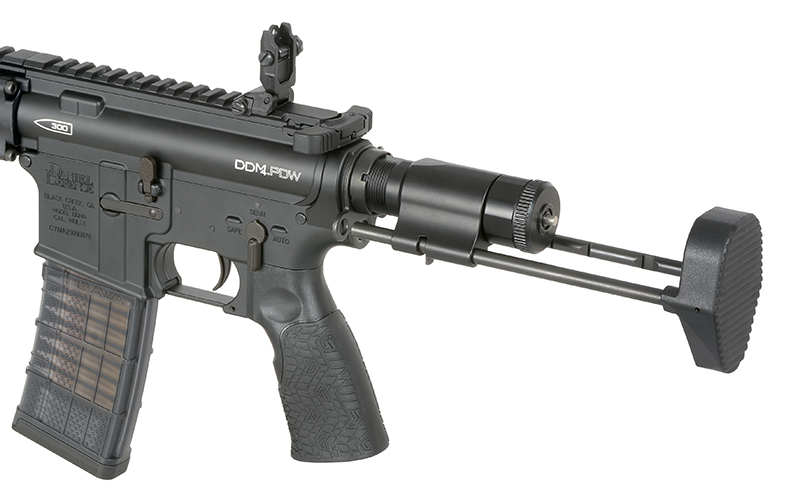

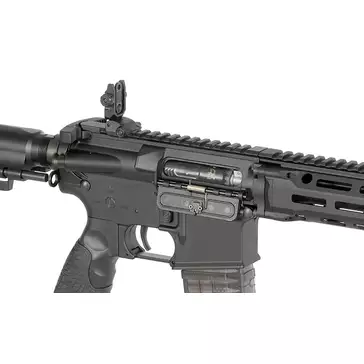

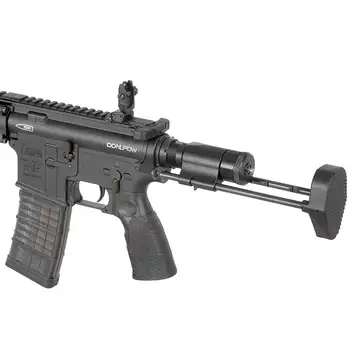

Additional features such as a bolt catch system, which facilitates access to hop-up adjustment, and a six-position aluminum PDW stock with sling mounting points and battery storage space, increase versatility and user comfort. High-quality

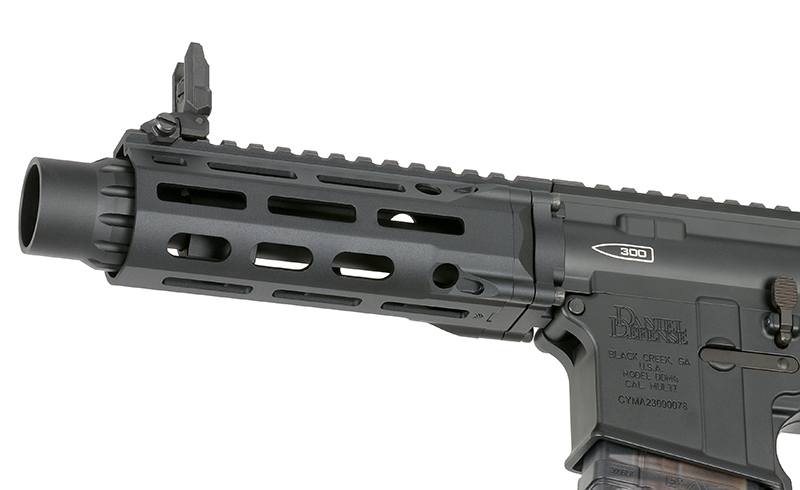

construction from durable aluminum alloys and licensed elements such as the Daniel Defense linear compensator, GRIP-N-RIP charging handle, and LANCER L5AWM 300BLK magazine emphasize the realistic character of this subcarbine.

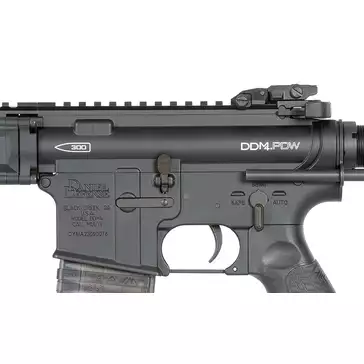

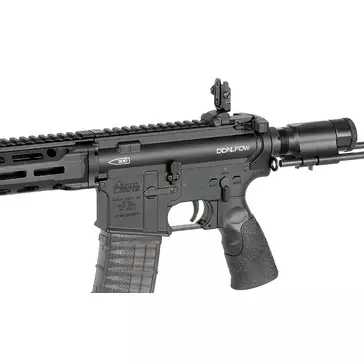

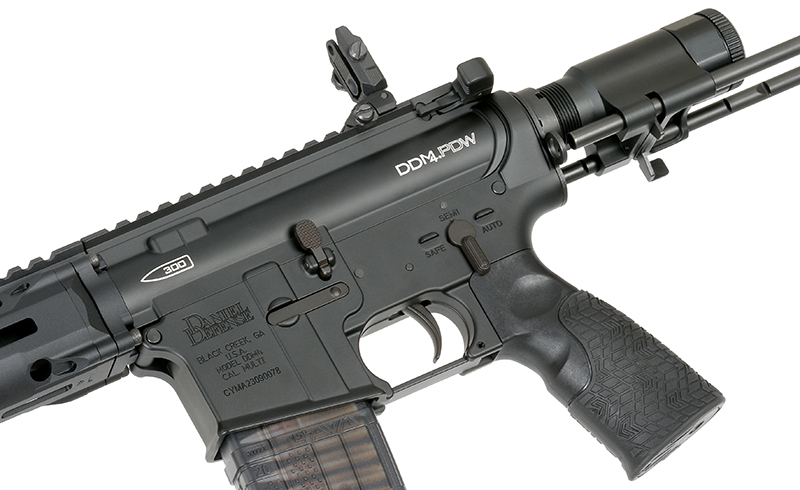

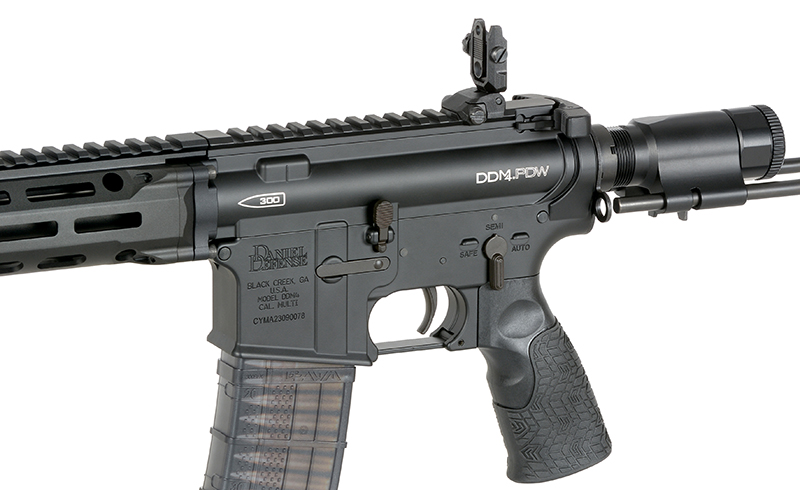

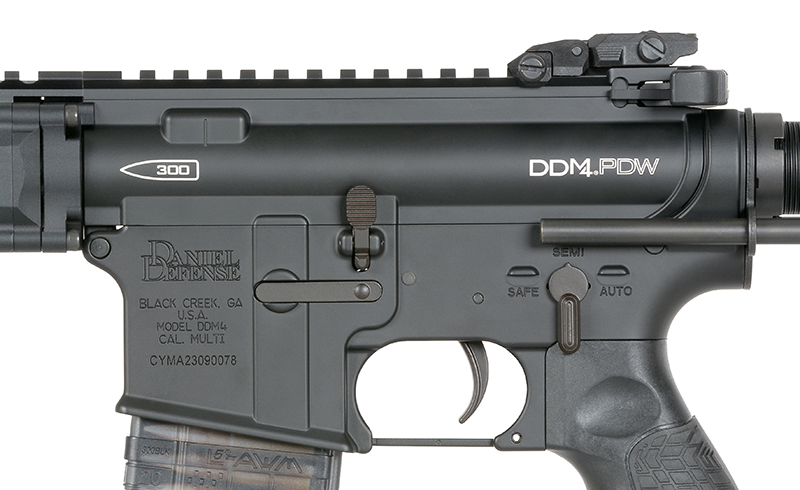

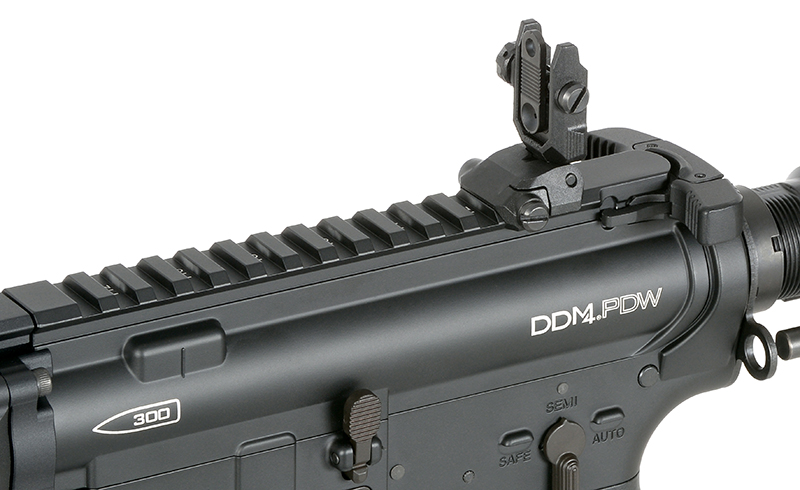

Moreover, the replica features authentic Daniel Defense model markings, 300BLK caliber markings, and an individual serial number, making it an exceptional option for both collectors and airsoft enthusiasts.

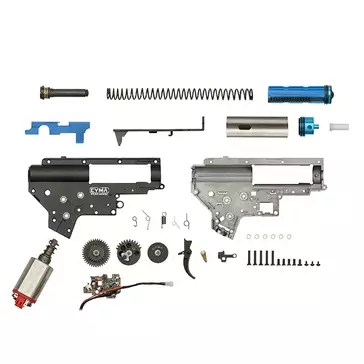

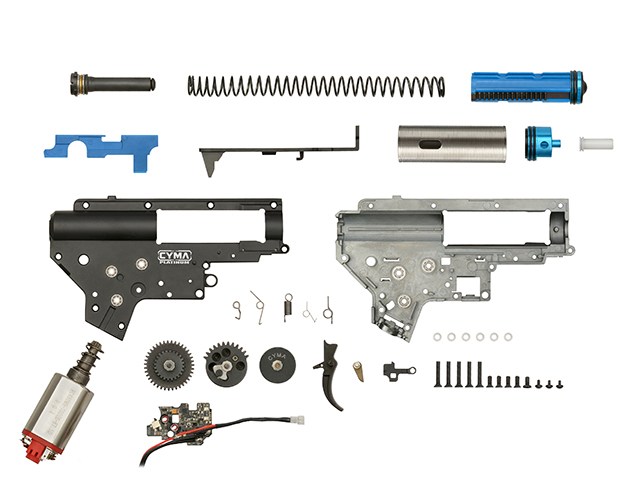

Gearbox V2 GEN-2 - The heart of CYMA Platinum replicas

The replica is equipped with a V2 GEN-2 gearbox designed to operate at high rates of fire (~27 RPS). The reinforced shell features improved bearing seats and radiused stress points.

A 13:1 gear ratio and short-stroke setup support extremely fast trigger response and a dynamic operating cycle. The system runs on 8 mm steel ball bearings, and the piston is equipped with a full steel rack. The assembly is completed with a
metal spring guide mounted on bearings. It also includes a quick spring change system (QSC).

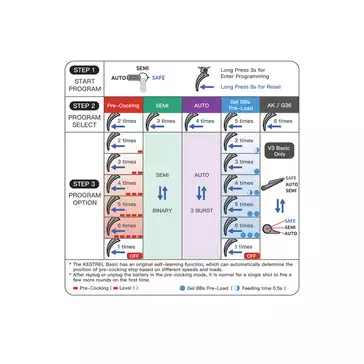

Electronic system - Eshooter Kestrel V2

The replica is equipped with the Kestrel V2 ETU unit, responsible for controlling operation and ensuring electrical system stability.

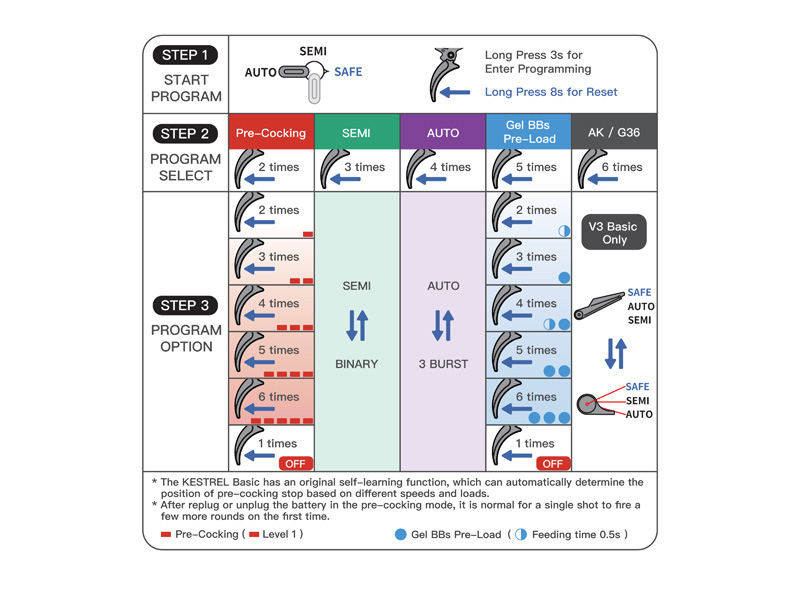

The system allows programming via trigger input, supports firing modes such as burst and binary, and includes pre-cocking and active brake functions to enhance cycle control.
It also features protections against overload, motor lock-up, and incorrect battery voltage.

High Torque motor

A neodymium long-type high torque motor ensures stable operation and responsiveness, which is important for dynamic firing.

Accuracy and shot consistency

A 190 mm inner barrel with a 6.03 mm diameter supports shot precision at short range.
A rotary metal hop-up chamber allows precise adjustment of BB trajectory.
The replica delivers approximately 340 FPS (~1.07 J) out of the box and a rate of fire of around 27 RPS.

Power supply

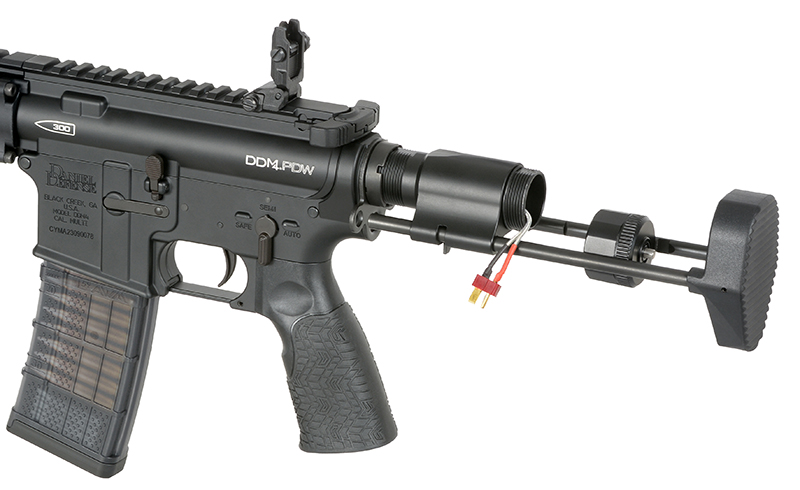

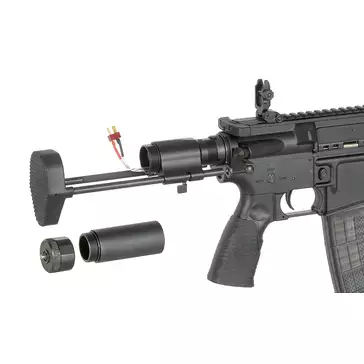

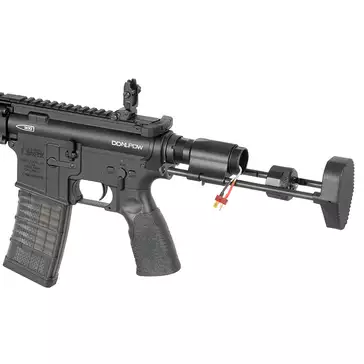

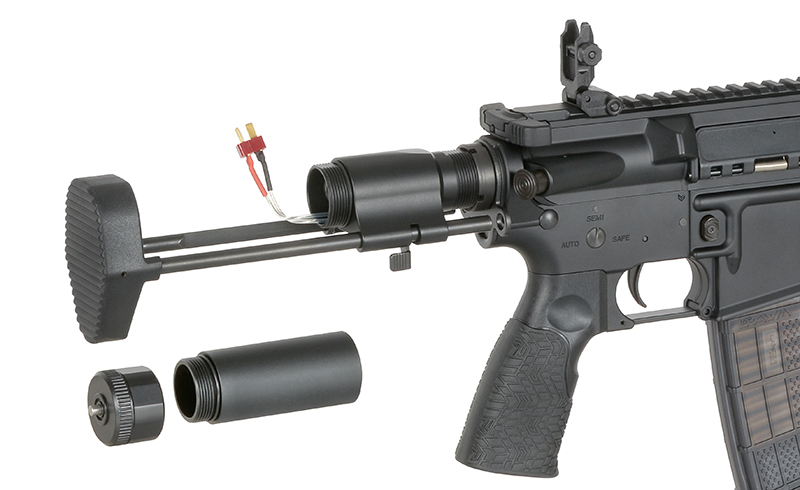

The battery is stored in the stock tube. The replica uses a T-connect plug.

In the set

  • replica Strike Industries 4" Raiders Competition PDW
  • 2 mid-cap magazines (190 BBs each)
  • speedloader
